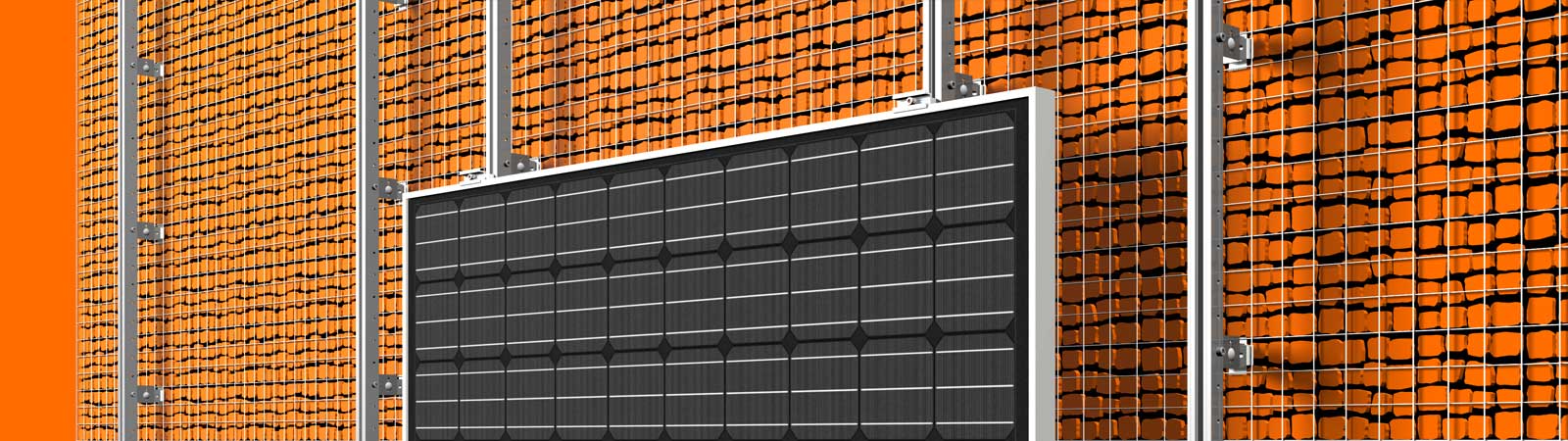

DICONAL^® GB-11 Gabion Mounting System

GB-11 Application

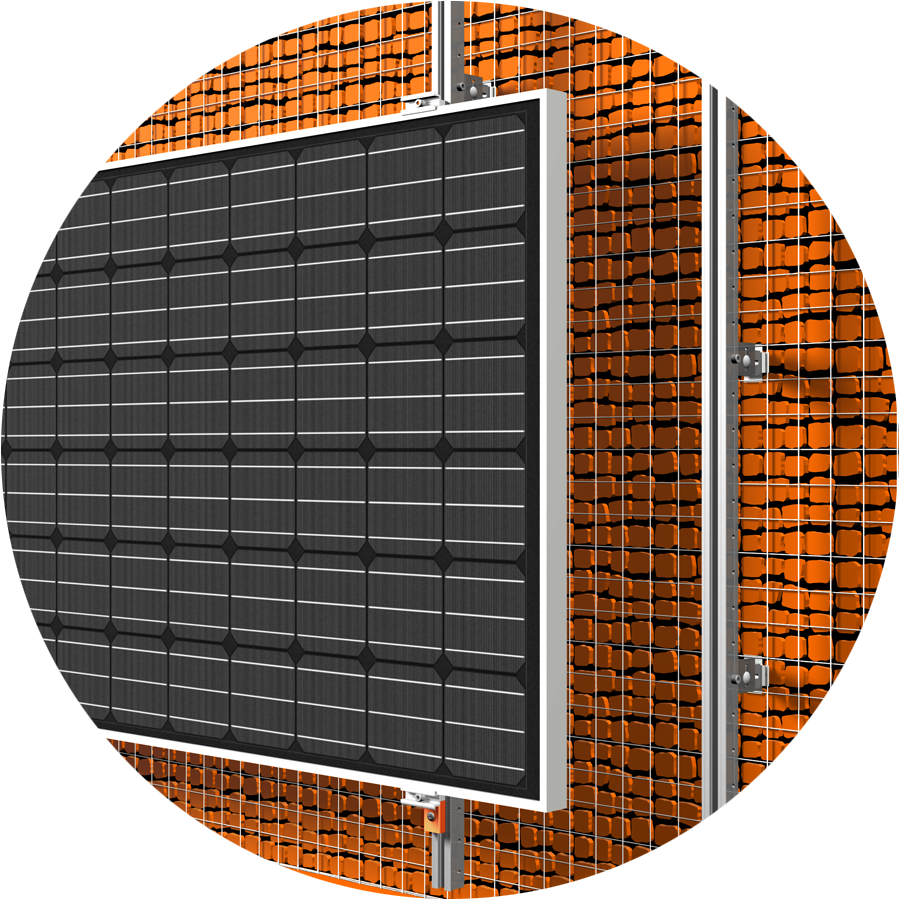

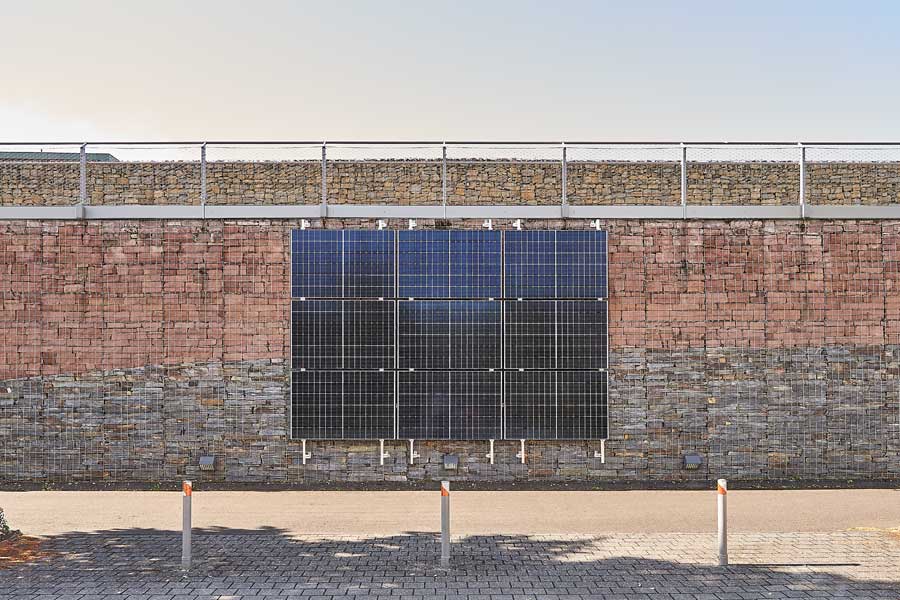

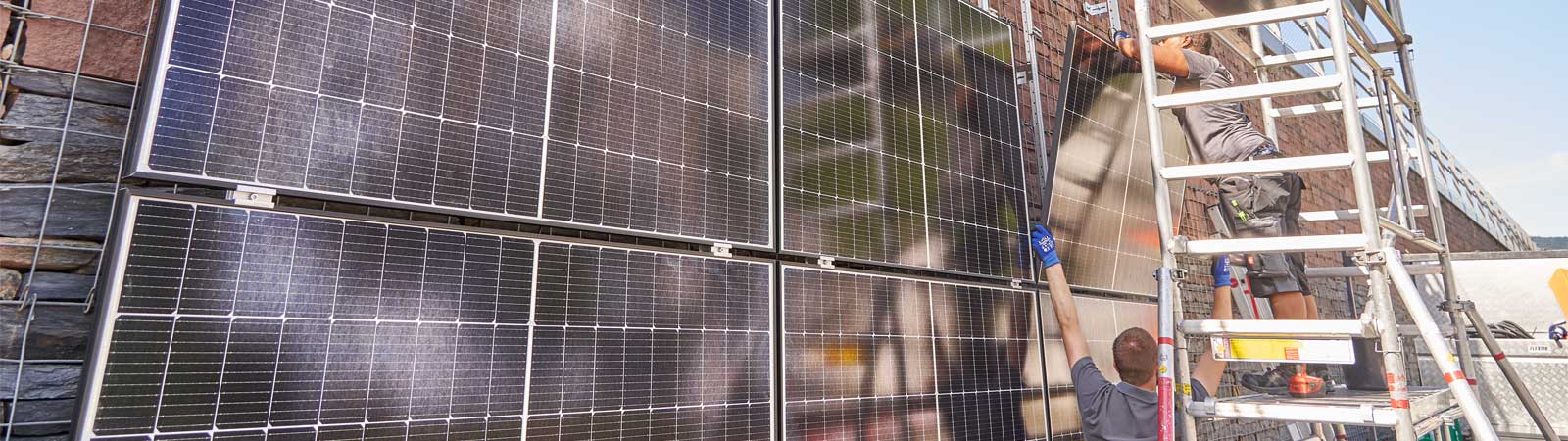

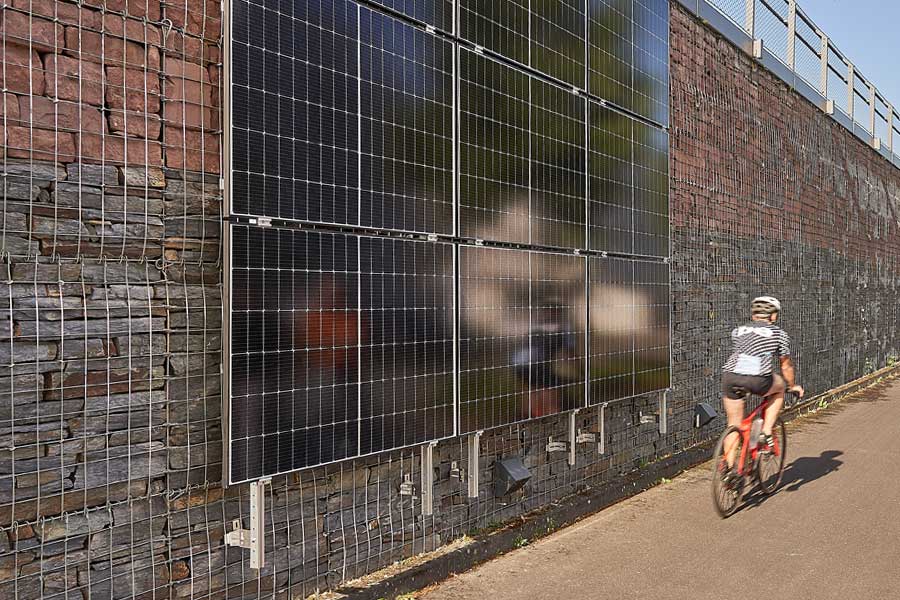

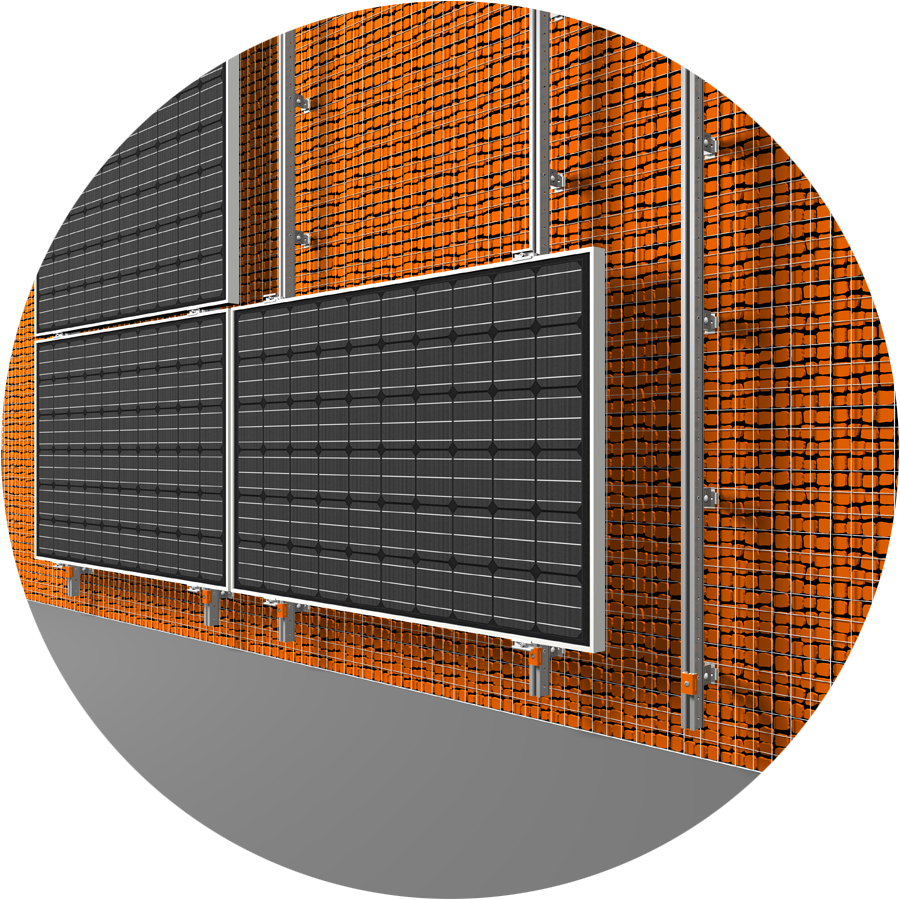

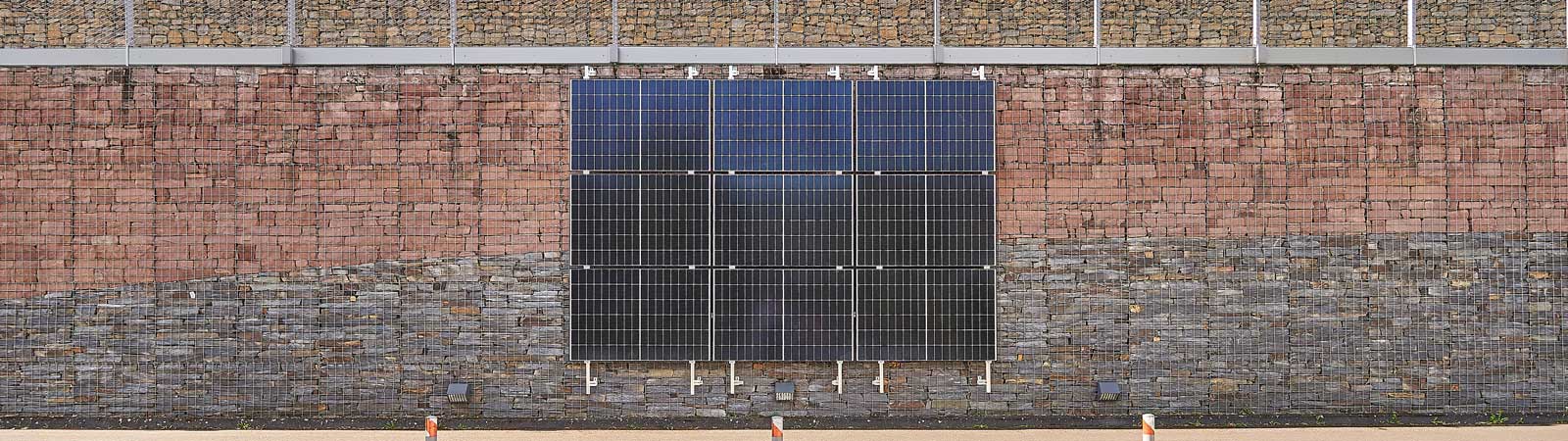

PV mounting on gabion baskets made of galvanised wire, with mesh sizes of 50x50, 50x100 and 100x100 mm.

Dowload dokuments:

• Complete DICONAL^® system data collection (6 MB)
• DOWNLOAD (leaflet, data sheets, data collection form, measurement sheet, terms and conditions)

Gabion PV-Mounting

• Retrofitting to existing gabions is possible
• Minimal stress on the gabion mesh
• Flexible setting and adjustment of the fixing points along the x, y and z axes allows adaptation to uneven stone surfaces
• The continuous profile plane distributes the suction load evenly across the corresponding number of fixing points
• The position of the clamps can be freely selected on the profile plane
• Compatible with the entire DICONAL^® PV mounting system

Technical Specifications
The GB-11 PV mounting solution for gabions consists of 3 components:

• Gabionen Klemme
• Einstellwinkel
• P-11 Profilebene
• Gabion clamp
• Adjustment angle
• P-11 profile plane

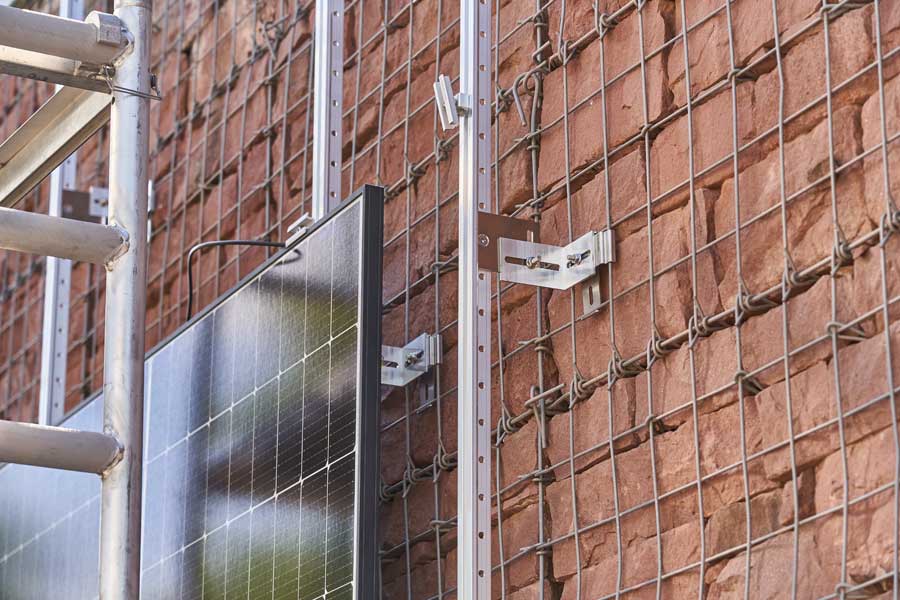

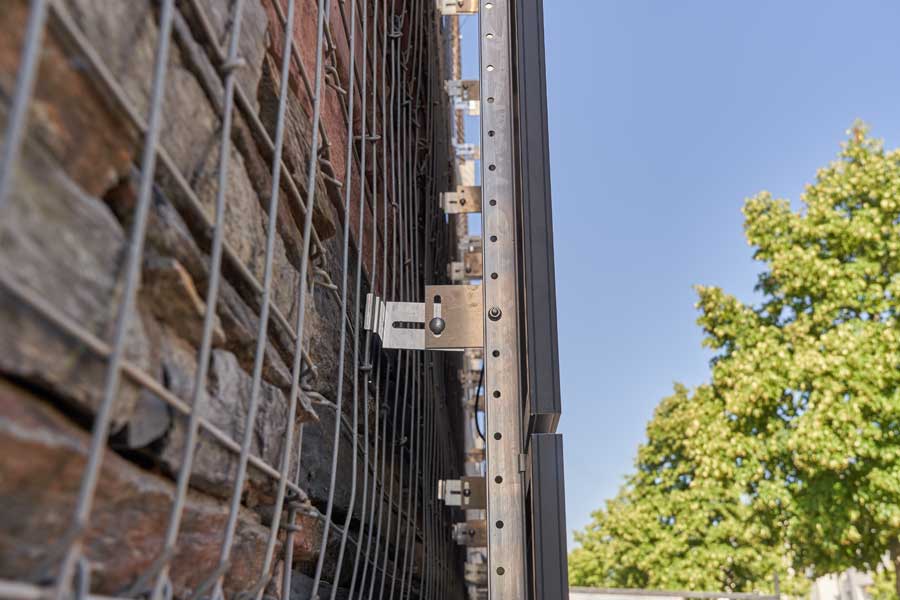

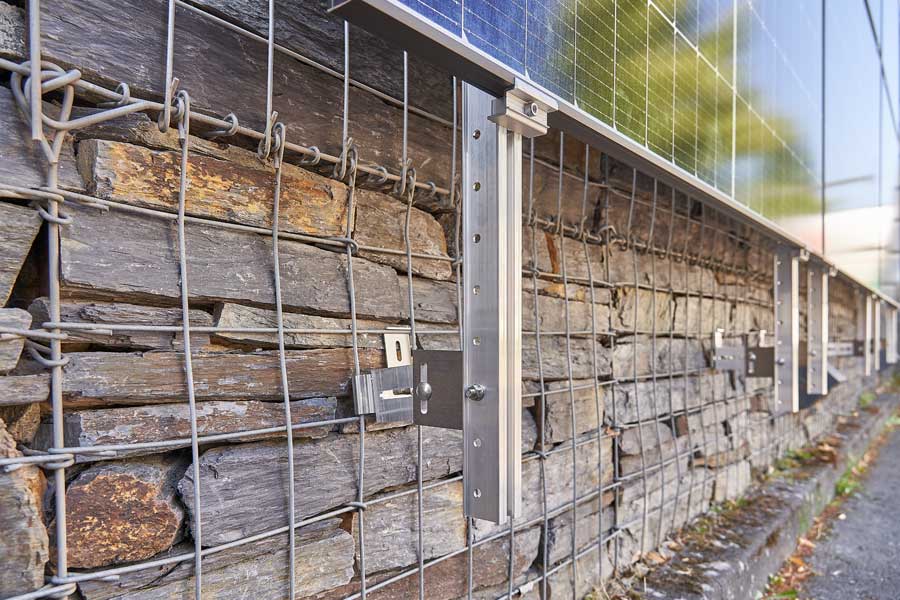

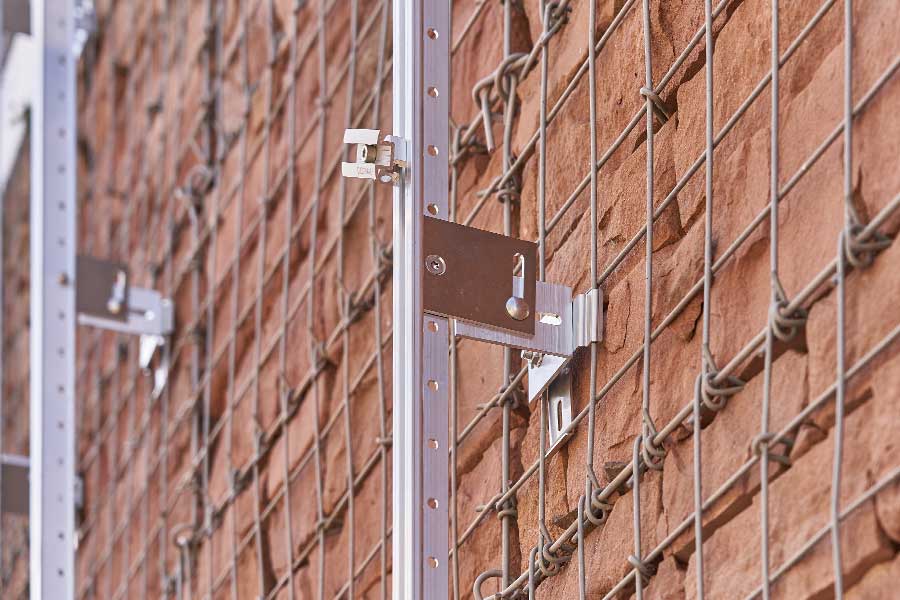

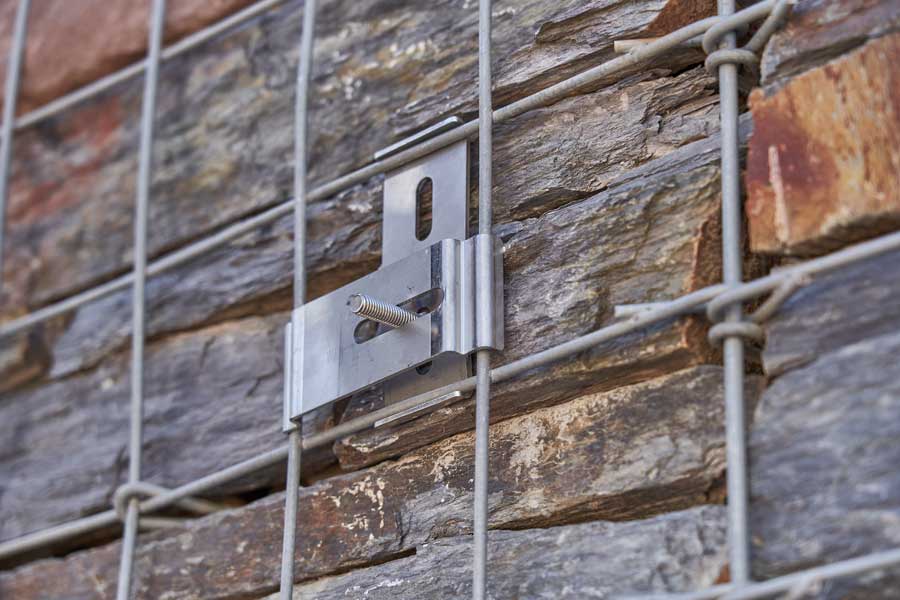

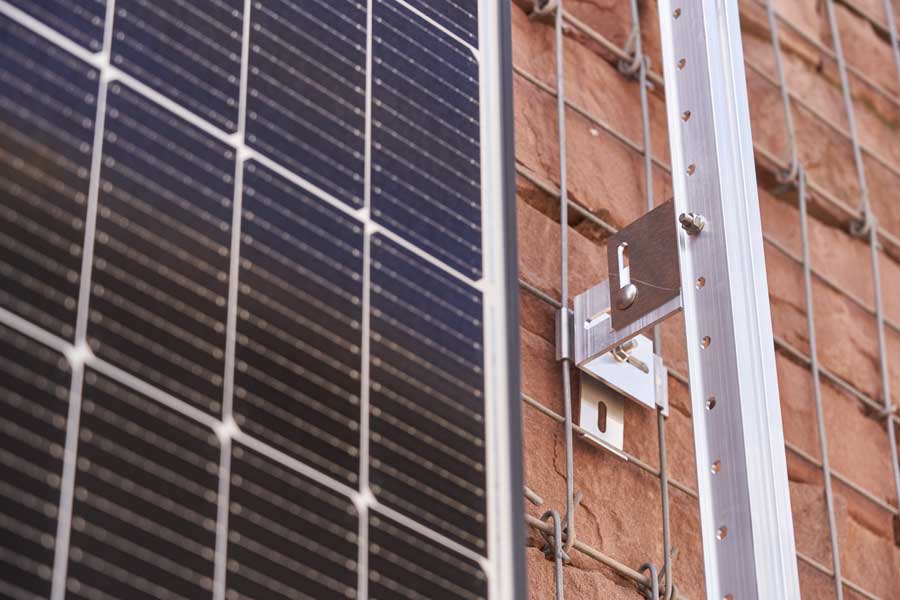

The clamp is secured to the gabion mesh using the upper and lower sections. Slotted holes in the clamp and in the adjustable bracket that can be fitted to it allow for the compensation of unevenness and the uniform alignment of the profile planes.

Material of gabion holders and clamps: V2A
Material of brackets / adjustment mechanisms: ENAW 6063
Material of P11 profile section: ENAW 6063
Material of screws: V2A

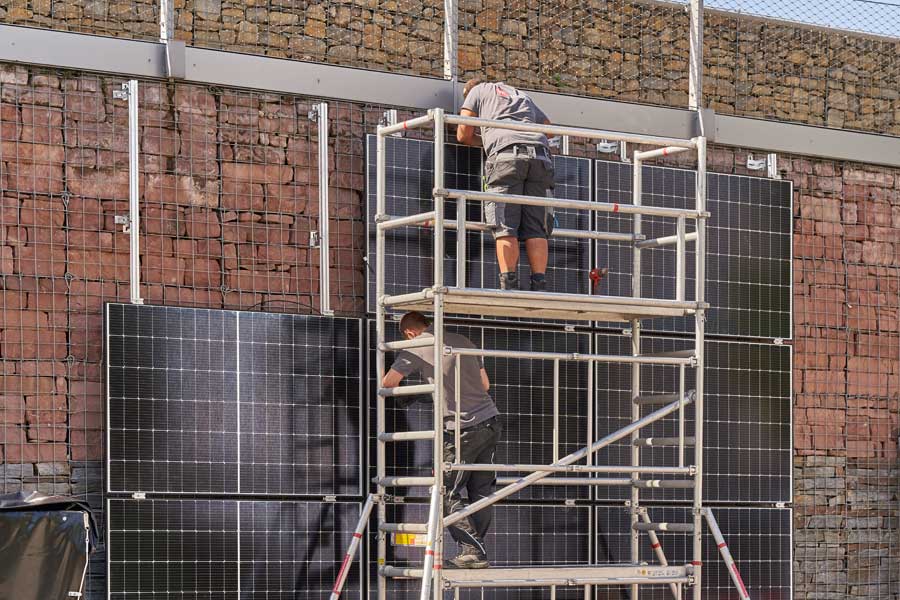

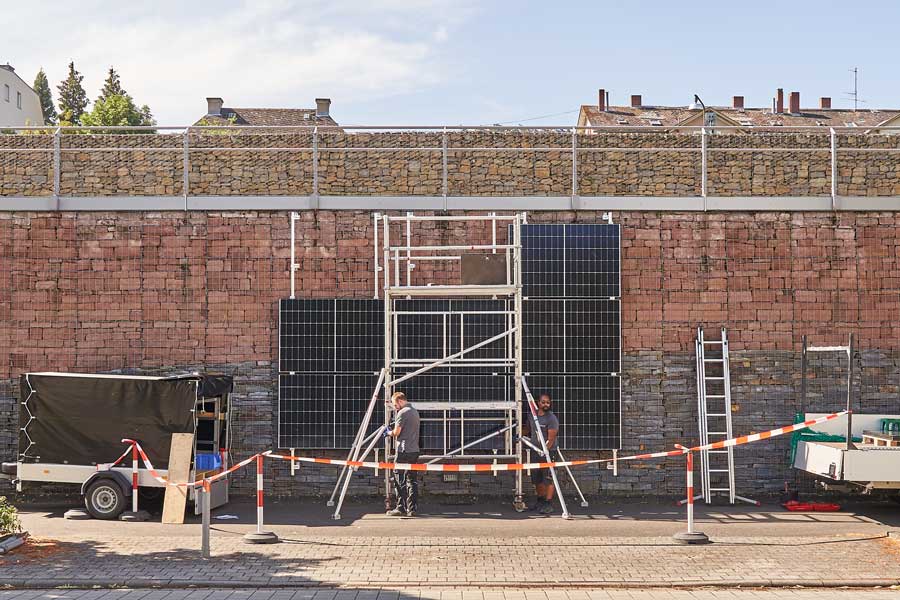

DICONAL^® GB-11 clamps references

DICONAL^® GB-11

DICONAL^® GB-11

DICONAL^® GB-11

DICONAL^® GB-11

DICONAL^® GB-11

DICONAL^® GB-11

(1)

DICONAL^® GB-11

(2)

DICONAL^® GB-11

(3)

DICONAL^® GB-11

(4)

DICONAL^® GB-11

(5)

DICONAL^® GB-11

(6)

DICONAL^® GB-11

(7)

DICONAL^® GB-11

(8)

DICONAL^® GB-11

(9)

DICONAL^® GB-11

(10)

DICONAL^® GB-11

(11)

DICONAL^® GB-11

(12)

DICONAL^® GB-11

(13)

DICONAL^® GB-11

(14)

DICONAL^® GB-11

(15)

DICONAL^® GB-11

(16)

DICONAL^® GB-11

(17)

DICONAL^® GB-11

(18)

DICONAL^® GB-11

(19)

DICONAL^® GB-11

(20)

DICONAL^® GB-11 Mounting

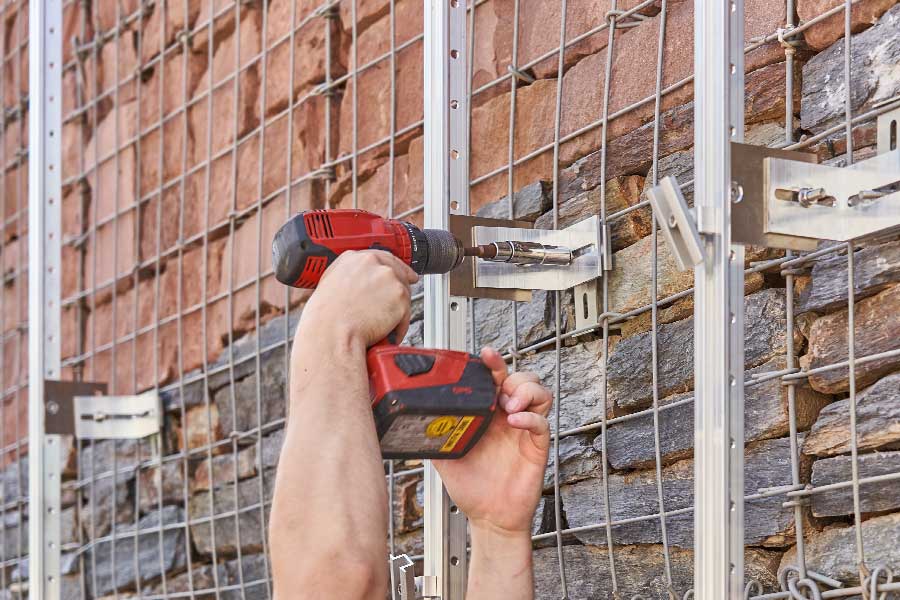

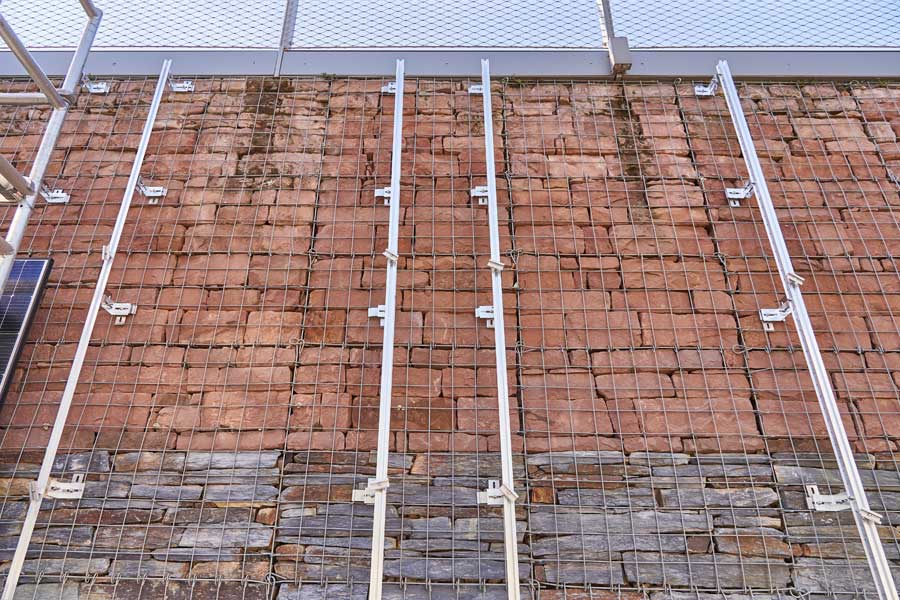

Inserting the brackets into the gabion baskets (21)

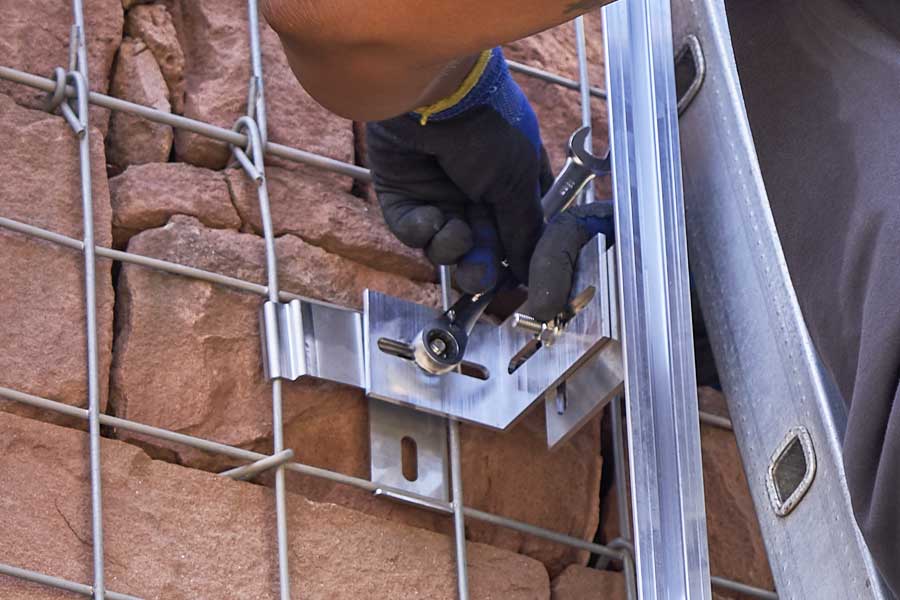

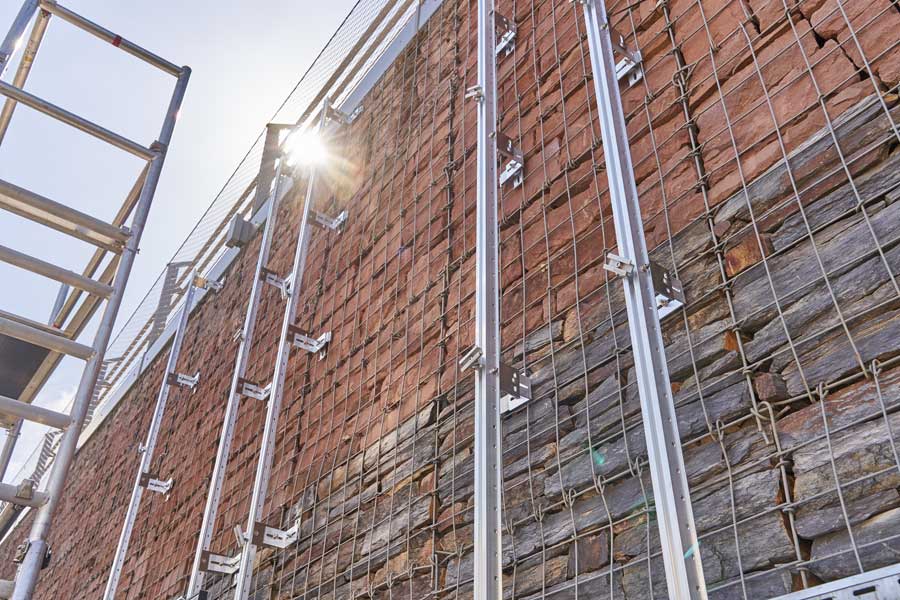

Fixing the adjustment brackets and the P-11 profiles (22)

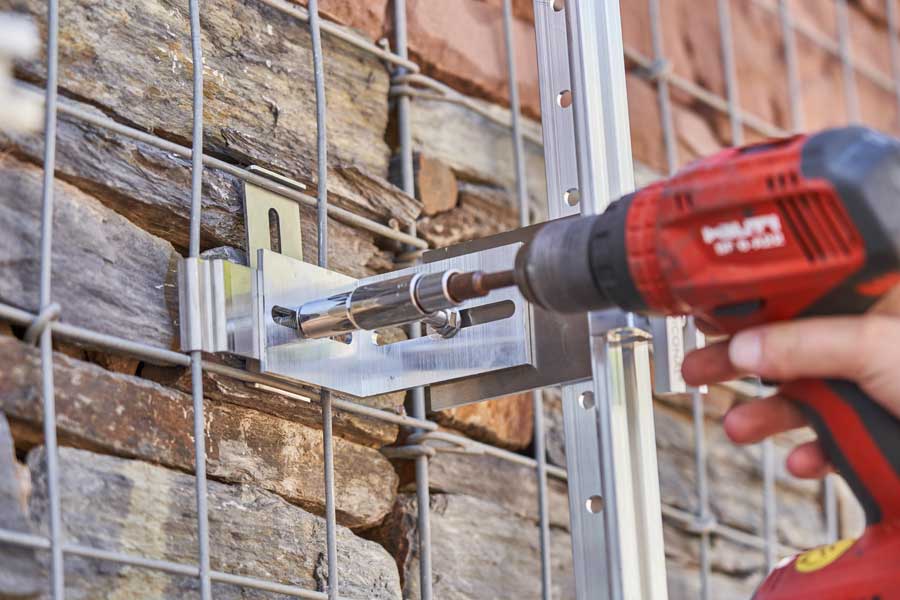

Fine adjustment – levelling out uneven surfaces. (23)

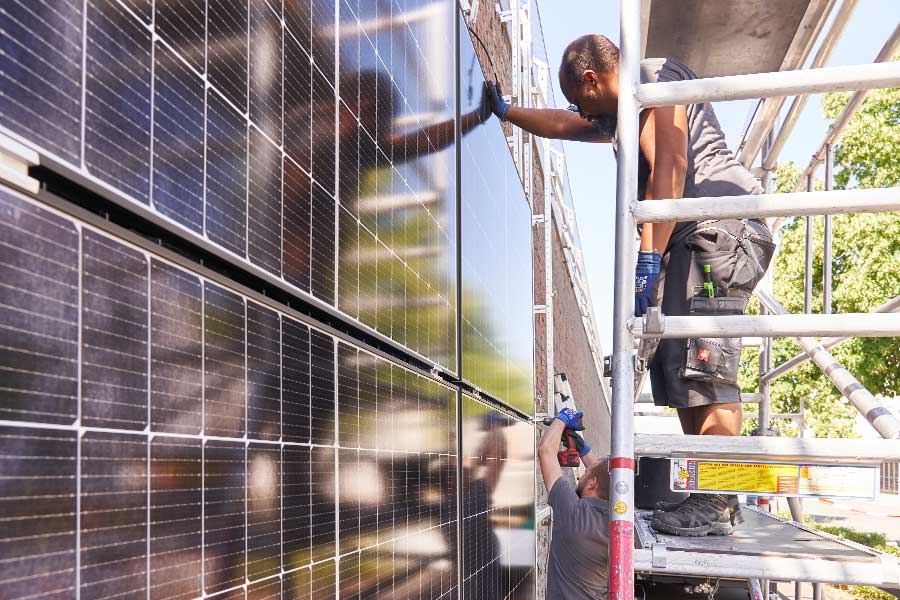

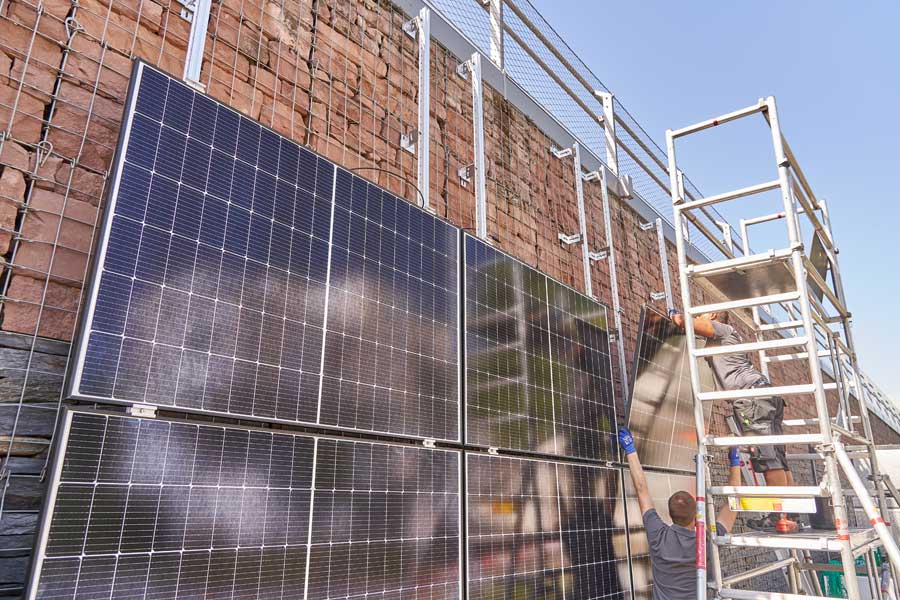

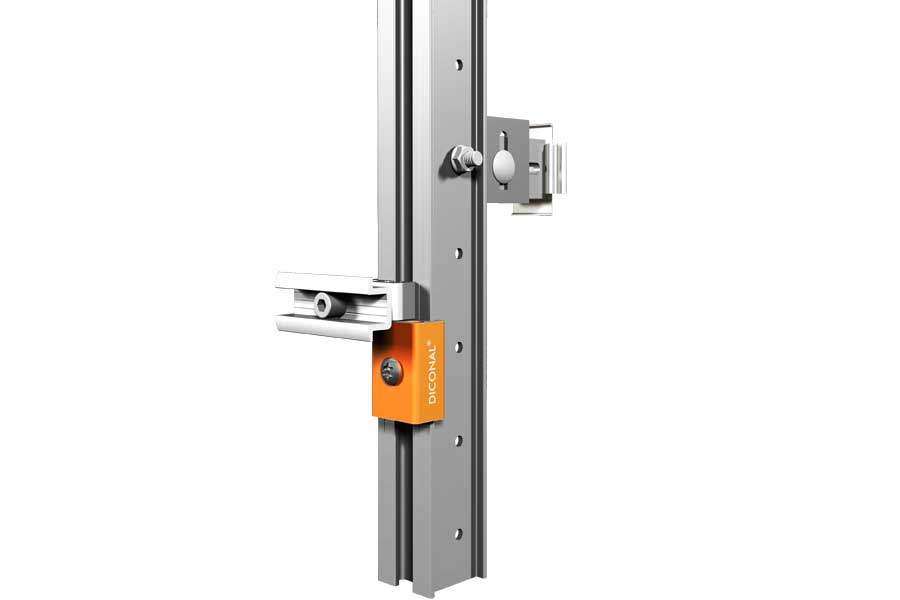

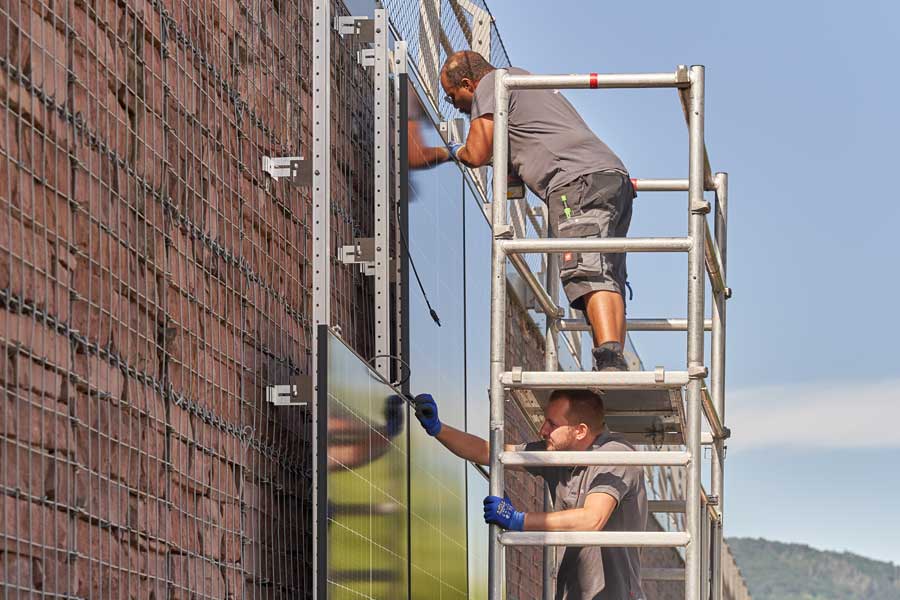

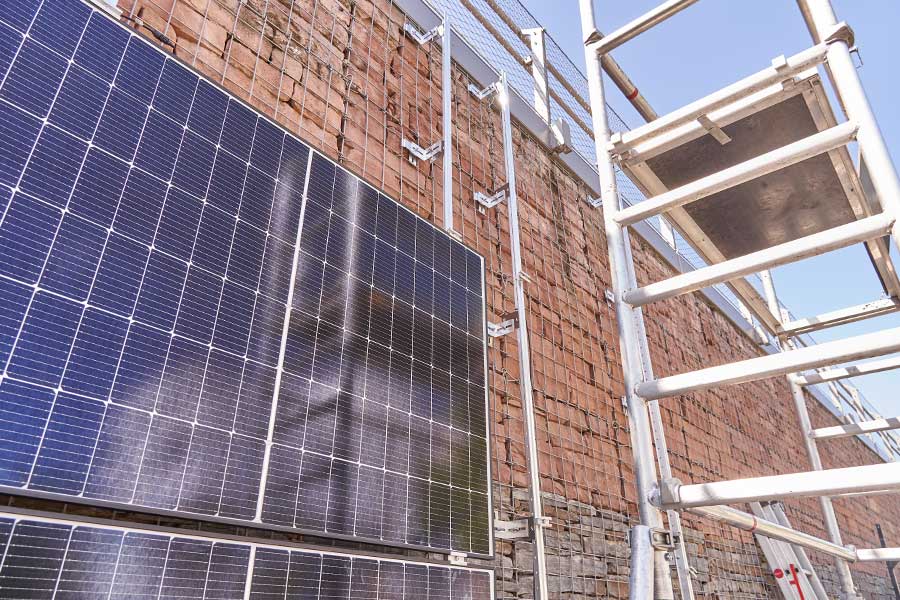

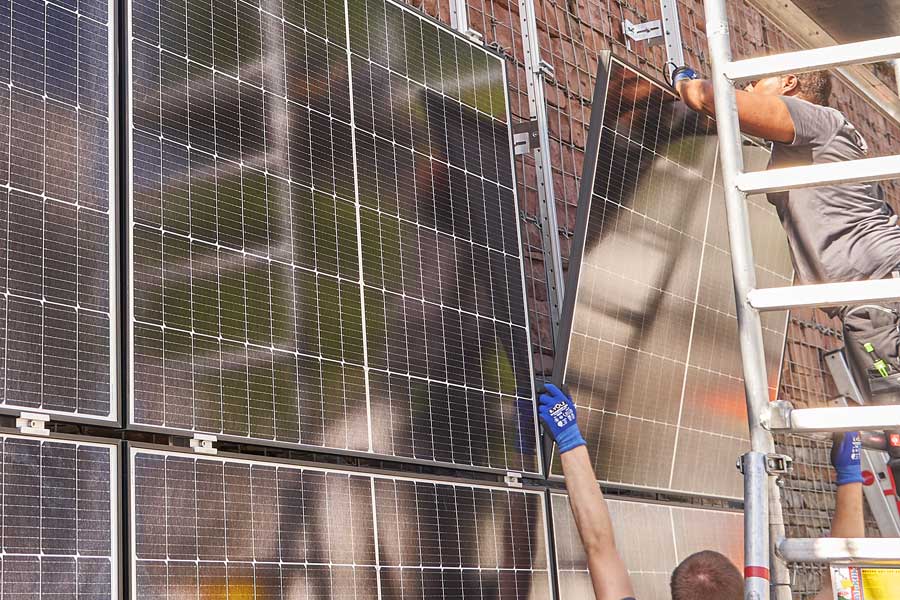

Fitting the modules to the P-11 profile. (Close-up, Figure 18)

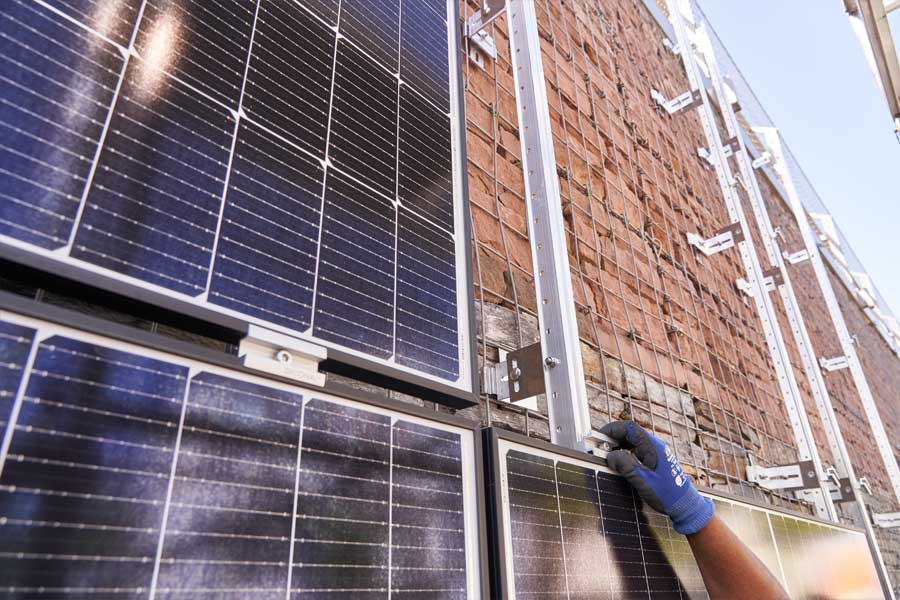

Secure the modules using the MMK and MEK module clamps. (Close-up, Figure 5)
